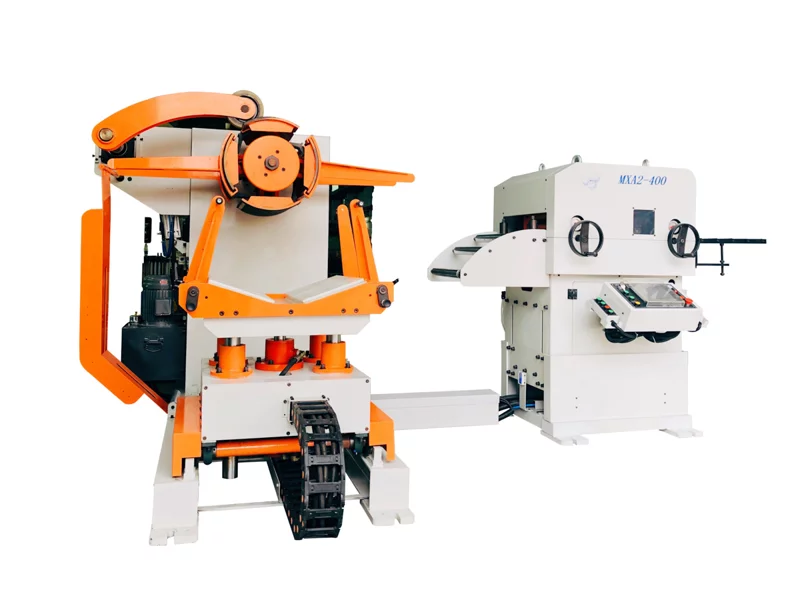

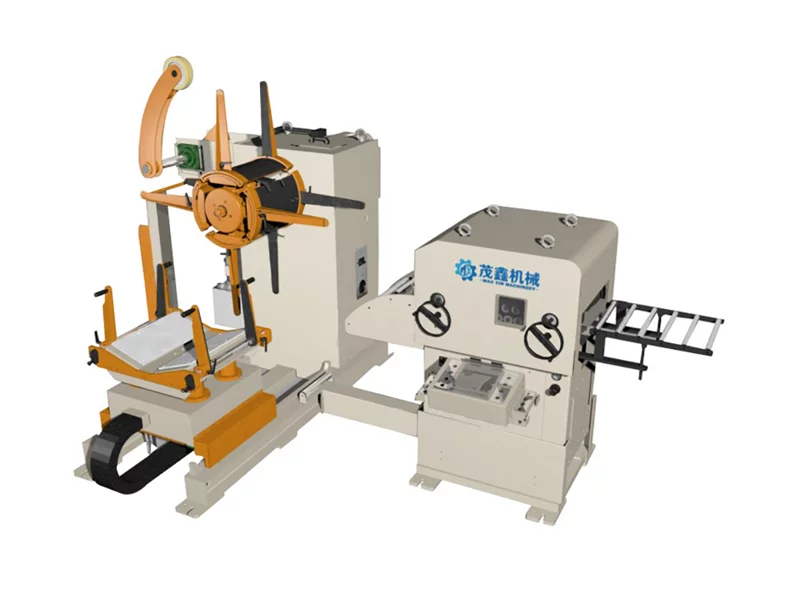

3 In 1 Light Duty Reel Straightener Feeder For Metal Sheet Press
Basic Attributes
- Model MXA2
- Coil Width 1,300 mm
- Coil Thickness 0.3-3.2 mm
- Coil Weight Capacity 8,000 kg
- Feeding Speed 16 m/min
- Feeding Accuracy ±0.15/±0.20 mm
Models List
-
MXA2-400
-
MXA2-500
-
MXA2-600
-
MXA2-800
-
MXA2-1000
-
MXA2-1300
Description
Features
- Combined uncoiler, straightener and feeder with ergonomic design, providing easier operation and better stability. Space saved with enhanced operation safety.
- Able to straighten types of material including hot rolled plate, cold rolled plate, pickled plate, stainless steel plate and aluminum alloy.
- 11 straightening rollers made of GCr15 with thermal treatment reaching hardness of HRC 56, also equipped with high standard grinding gears.
- Well-known brand servo system and other electrical devices to better ensure the stability and lifespan of the machine to lower the need of after-sales service.
- All standard models are able to fit all kinds of press, and customization is also available.
Straightening Capability
Feeding Speed Curve
Product Specification
| Item | MXA2-400 | MXA2-500 | MXA2-600 | MXA2-800 |
|---|---|---|---|---|
| Material Width mm | 50-400 | 50-500 | 50-600 | 70-800 |
| Material Thickness mm | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 |
| Max. Material Weight kg | 3000 | 5000 | 5000 | 5000 |
| Coil Inner Diameter mm | 508 | 508 | 508 | 508 |
| Coil Outer Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Servo Motor kW | 2.9 | 2.9 | 4.4 | 4.4 |
| Material Rack Motor kW | 1.5 | 2.2 | 2.2 | 2.2 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 |
| Max. Feeding Speed m/min | 16 | 16 | 16 | 16 |
| Mandrel Expansion Range mm | 480-520 | 480-520 | 480-520 | 480-520 |
| Item | MXA2-1000 | MXA2-1300 |
|---|---|---|
| Material Width mm | 70-1000 | 70-1300 |
| Material Thickness mm | 0.3-3.2 | 0.3-3.2 |
| Max. Material Weight kg | 8000 | 8000 |
| Coil Inner Diameter mm | 508 | 508 |
| Coil Outer Diameter mm | 1200 | 1200 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5-0.6 | 0.5-0.6 |
| Servo Motor kW | 5.5 | 5.5 |
| Material Rack Motor kW | 3.7 | 3.7 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 |
| Max. Feeding Speed m/min | 16 | 16 |
| Mandrel Expansion Range mm | 480-520 | 480-520 |
Product Advantages

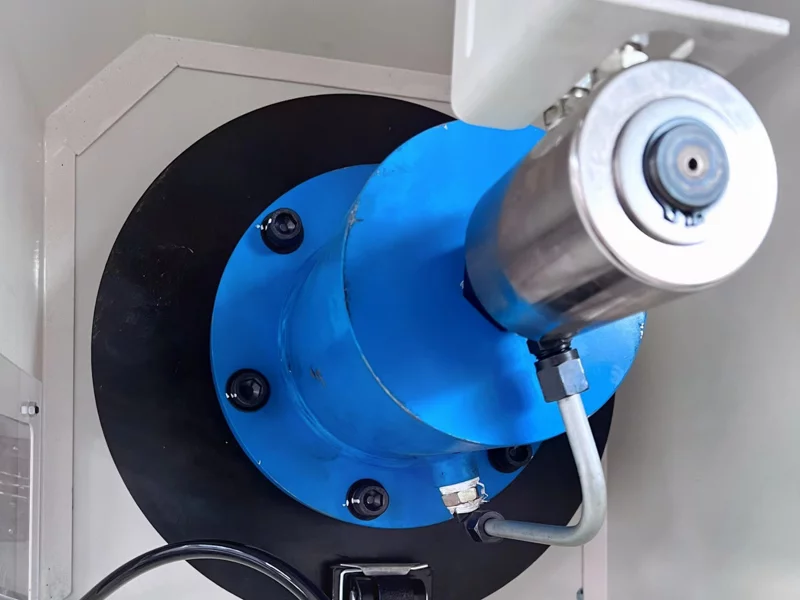

Oil Cylinder
YASKAWA Servomotor
Decoiling Rack

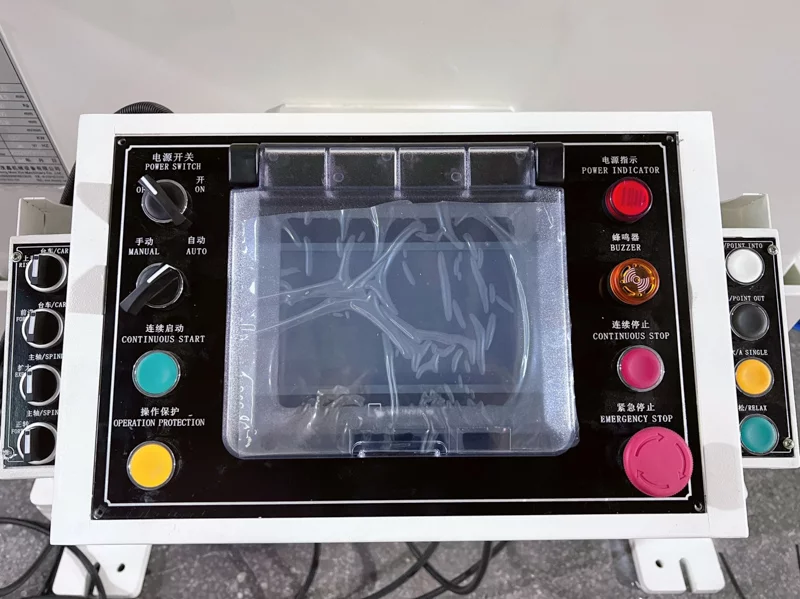

Control Panel

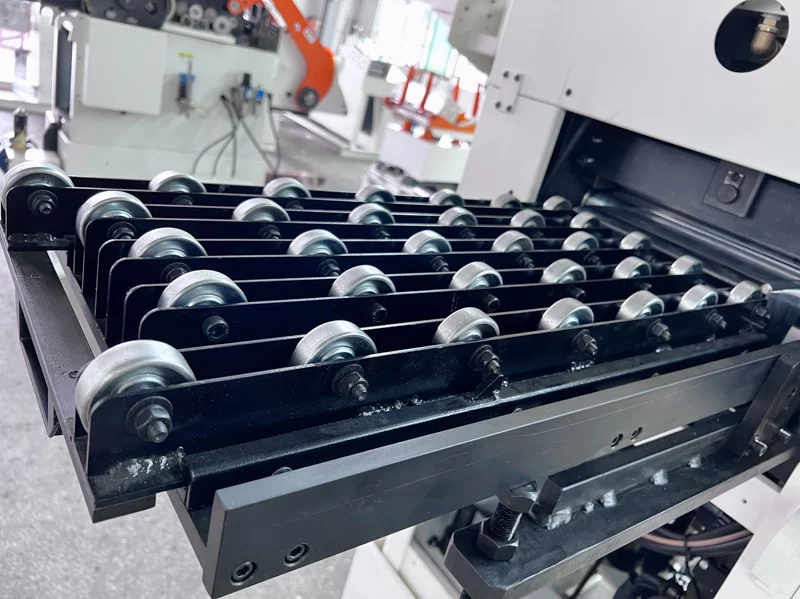

Support Rack
Hydraulic Station
Press and Support Arms
Transmission gearbox

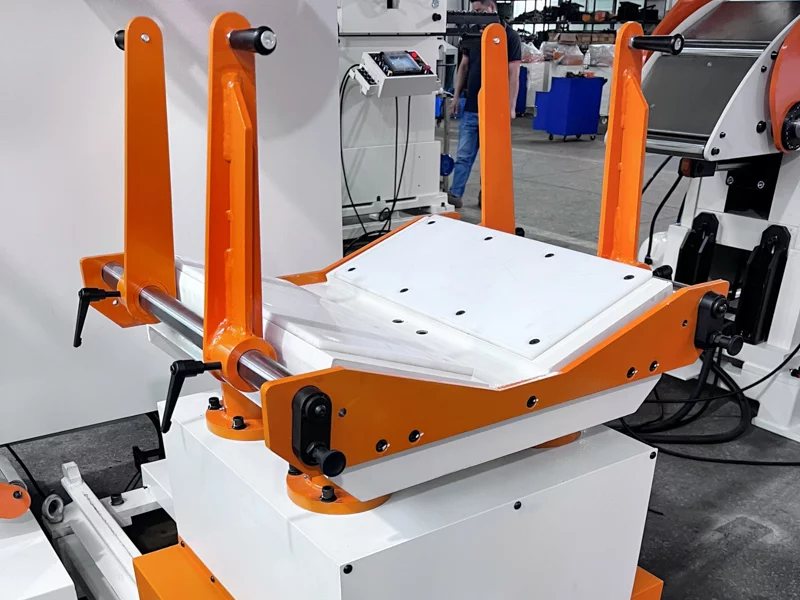

Coil Car
