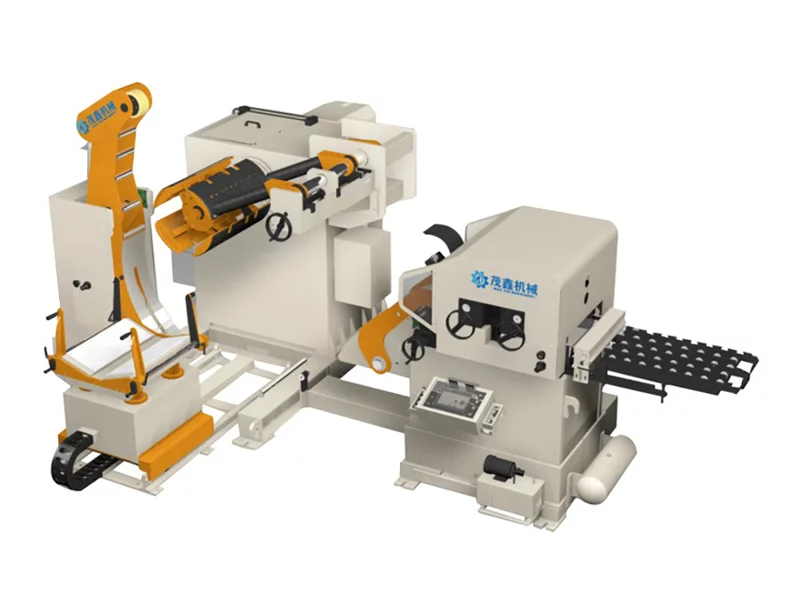

Decoiling Levelling Feeder Machine For High Strength Metal Sheet Stamping
Basic Attributes
- Model MXA4-H
- Coil Width 70-1600 mm
- Coil Thickness 0.6-6.0 mm
- Coil Weight Capacity 15,000 kg
- Feeding Speed v m/min
- Feeding Accuracy ±1.5 mm
Models List
-
MXA4-600H
-
MXA4-800H
-
MXA4-1000H
-
MXA4-1300H
-
MXA4-1400H
-
MXA4-1600H

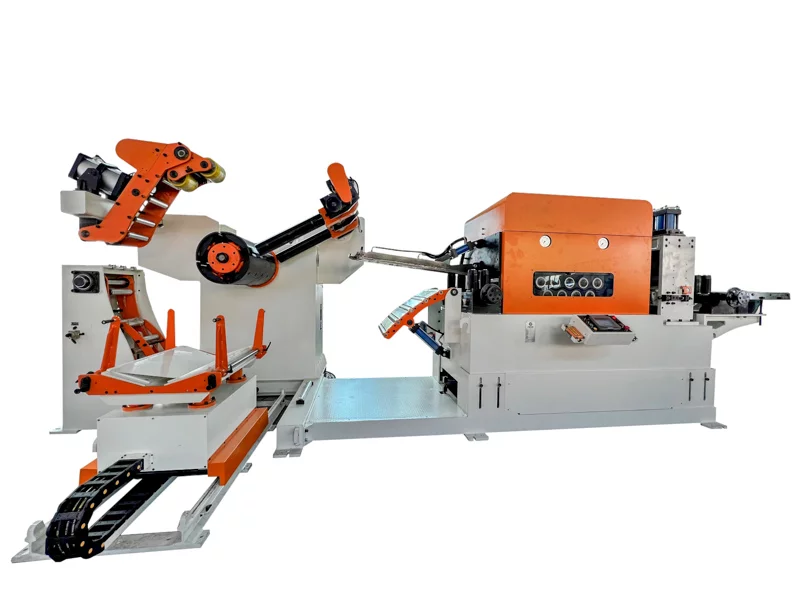

Description
Features
- Combined uncoiler, straightener and feeder with ergonomic design, providing easier operation and better stability. Space saved with enhanced operation safety.
- Able to straighten types of material including hot rolled plate, cold rolled plate, pickled plate and stainless steel plate, specially for metal with higher strength of yield strength ≤780 N/mm².
- 9 straightening rollers made of GCr15 with thermal treatment reaching hardness of HRC 56, also equipped with high standard grinding gears.
- Well-known brand servo system and other electrical devices to better ensure the stability and lifespan of the machine to lower the need of after-sales service.
- All standard models are able to fit all kinds of press, and customization is also available, currently thickest model can handle steel plate with thickness of 12mm,
Straightening Capability
Feeding Speed Curve
Product Specification
| Item | MXA4-600H | MXA4-800H | MXA4-1000H | MXA4-1300H |
|---|---|---|---|---|
| Material Width mm | 70-600 | 70-800 | 70-1000 | 70-1300 |
| Material Thickness mm | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
| Max. Material Weight kg | 8000 | 8000 | 15000 | 15000 |
| Coil Inner Diameter mm | 508 | 508 | 508 | 508 |
| Coil Outer Diameter mm | 1400 | 1400 | 1400 | 1400 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5 | 0.5 | 0.5 | 0.5 |
| Servo Motor kW | 11 | 11 | 11 | 15 |
| Material Rack Motor kW | 3.7 | 3.7 | 7.5 | 7.5 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/ ±0.2 | ±0.15/ ±0.2 | ±0.15/ ±0.2 | ±0.15/ ±0.2 |
| Max. Feeding Speed m/min | 16 | 16 | 16 | 16 |
| Mandrel Expansion Range mm | 480-520 | 480-520 | 480-520 | 480-520 |
| Item | MXA4-1400H | MXA4-1600H |
|---|---|---|
| Material Width mm | 70-1400 | 70-1600 |
| Material Thickness mm | 0.6-6.0 | 0.6-6.0 |
| Max. Material Weight kg | 15000 | 15000 |
| Coil Inner Diameter mm | 508 | 508 |
| Coil Outer Diameter mm | 1400 | 1400 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5 | 0.5 |
| Servo Motor kW | 15 | 22 |
| Material Rack Motor kW | 7.5 | 7.5 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/ ±0.2 | ±0.15/ ±0.2 |
| Max. Feeding Speed m/min | 16 | 16 |
| Mandrel Expansion Range mm | 480-520 | 480-520 |
Product Advantages

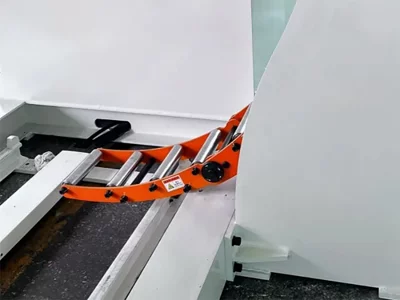

Coil Outlet
Coil Outlet device used on high strength coil decoiler

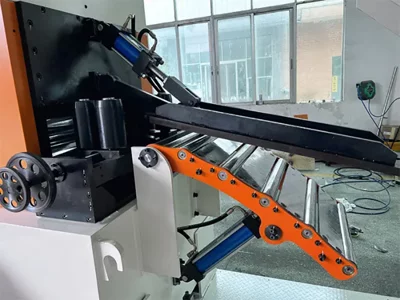

Coil Inlet Device
coil inlet device used on high strength coil decoiler

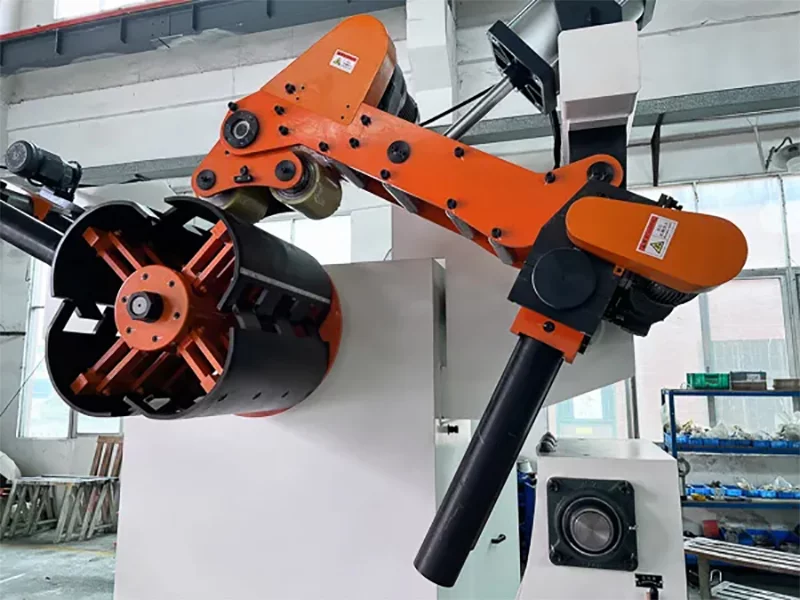

Support Arm
Support Arm Spacing Roller used on high strength coil decoiler

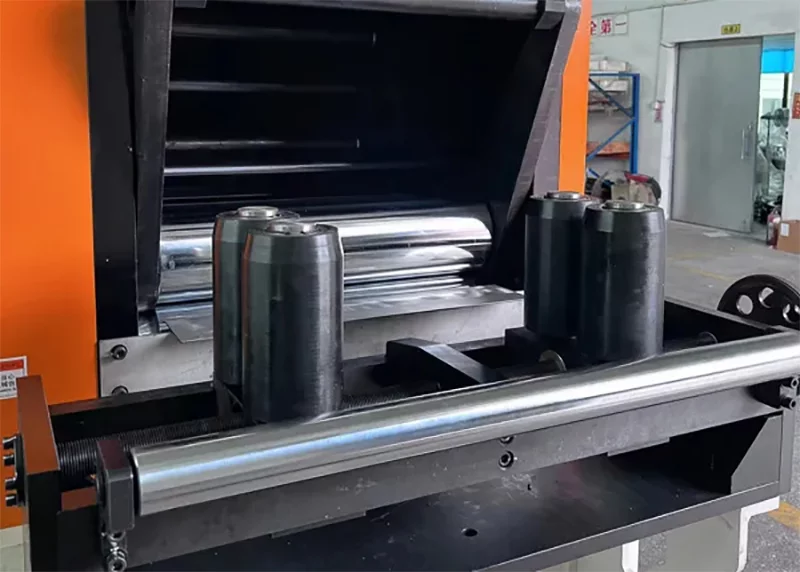

Spacing Roller
Spacing Roller used on high strength coil decoiler

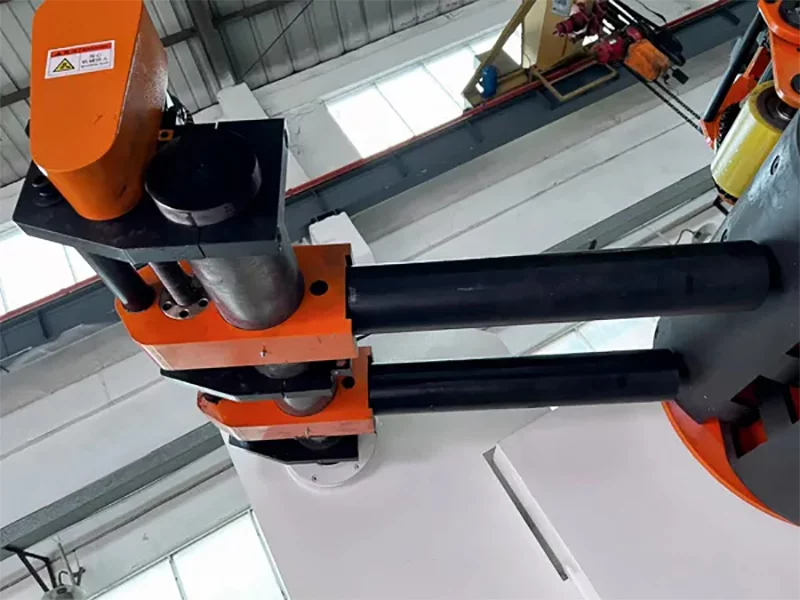

Press Arm
used on high strength coil decoiler

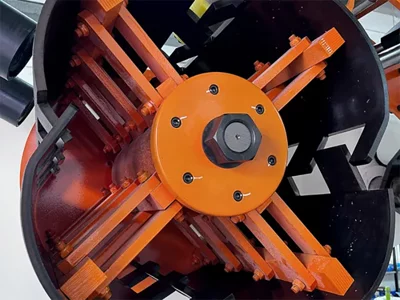

Expanding Shaft
used on high strength coil decoiler
Control Panel
YASKAWA Servomotor
Coil Car
