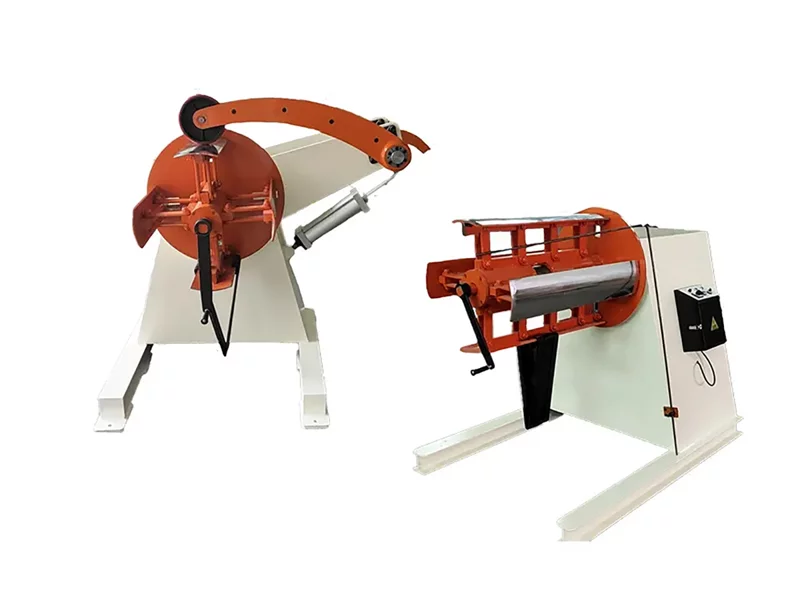

Classic Coil Decoiling Rack For Metal Sheet Stamping Line Made In Taiwan
Basic Attributes
- Model MT
- Coil Width 200-600 mm
- Coil Weight Capacity 10,000 kg
Models List
-
MT-200
-
MT-300
-
MT-400
-
MT-500
-
MT-600
-
MT-700
-
MT-800
-
MT-1000
-
MT-1300
-
MT-1600
Description
Features
- Material uncoiler plays an important role in stamping lines, the uncoiler not just holds the strip but also safely and automatically unrolls it heading to leveler by rotating.
- It can either be located at the beginning of a process line for material feeding or at the end of the line collecting waste material.
- Uncoiler is an essential part in every roll forming production line with its characteristics of easier operation and low maintenance needed with such tight structure.
- The loading capability of our material uncoilers are from 3tons to 10tons.
- Customization is also available, including coil car, press arm, hydraulic distension and frequency inverter.
Product Specification
| Item | MT-200 | MT-300 | MT-400 | MT-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Max. Material Weight kg | 500 | 800 | 1500 | 2000 |
| Coil Inner Diameter mm | Ø450 - Ø530 | Ø450 - Ø530 | Ø450 - Ø530 | Ø450 - Ø530 |
| Coil Outer Diameter mm | Ø1200 | Ø1200 | Ø1200 | Ø1200 |
| Motor HP | 0.5 | 1 | 2 | 3 |
| Item | MT-600 | MT-700 | MT-800 | MT-1000 |
|---|---|---|---|---|
| Material Width mm | 600 | 700 | 800 | 1000 |
| Material Thickness mm | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Max. Material Weight kg | 3000 | 5000 | 5000 | 5000 |
| Coil Inner Diameter mm | Ø450 - Ø530 | Ø450 - Ø530 | Ø450 - Ø530 | Ø450 - Ø530 |
| Coil Outer Diameter mm | Ø1200 | Ø1200 | Ø1200 | Ø1200 |
| Motor HP | 3 | 3 | 3 | 3 |
| Item | MT-1300 | MT-1600 |
|---|---|---|
| Material Width mm | 1300 | 1600 |
| Material Thickness mm | 0.5-2.5 | 0.5-2.5 |
| Max. Material Weight kg | 5000 | 10000 |
| Coil Inner Diameter mm | Ø450 - Ø530 - Ø610 | Ø450 - Ø530 - Ø610 |
| Coil Outer Diameter mm | Ø1600 | Ø1600 |
| Motor HP | 5.5 kW | 7.5 kW |
Product Advantages
Brake Device
PU Press Wheel

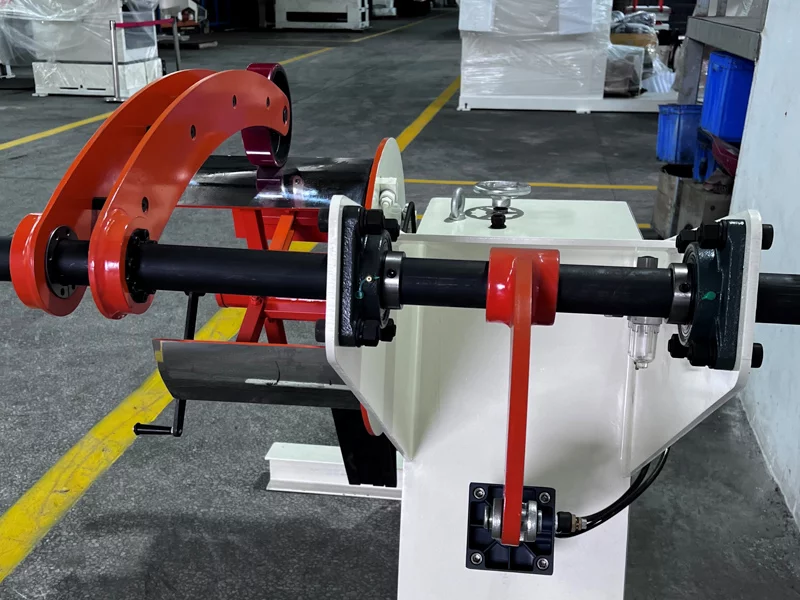

Press Arm Structure

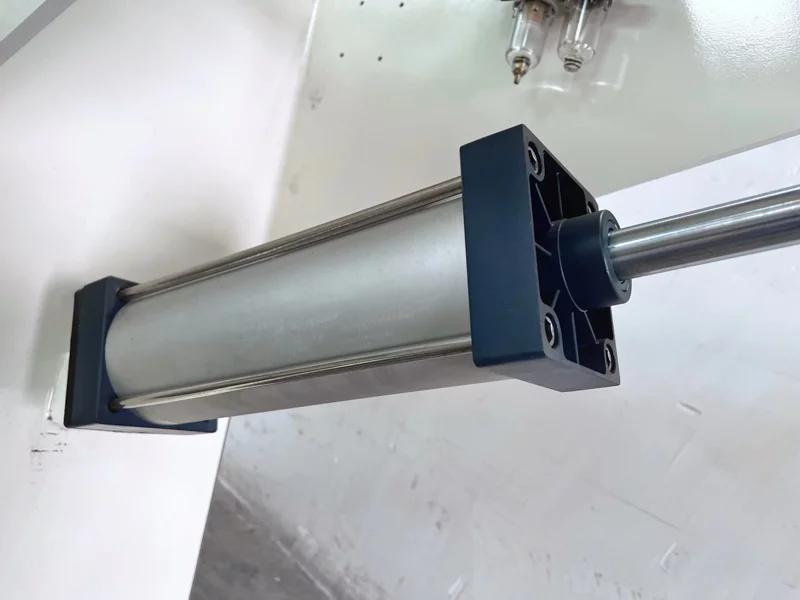

Air Cylinde
Air Triplet

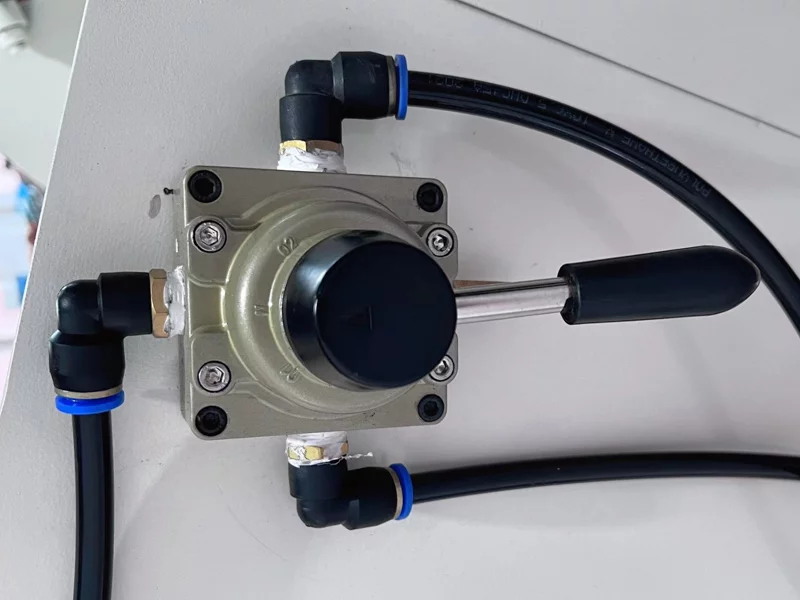

Press Arm Switch
Expanding Shaft
Expanding Shaft on GO Straightening Machine With Uncoiler
