Heavy Duty Coil Decoiling Machine For Metal Sheet Stamping Line
Basic Attributes
- Model ML
- Coil Width 400-1300 mm
- Coil Weight Capacity 2000-10000 kg
- Feeding Speed 15 m/min
Models List
-
ML-400
-
ML-600
-
ML-800
-
ML-1000
-
ML-1300
Description
Features
- Material uncoiler plays an important role in stamping lines, the uncoiler not just holds the strip but also safely and automatically unrolls it heading to leveler by rotating.
- It can either be located at the beginning of a process line for material feeding or at the end of the line collecting waste material.
- Uncoiler is an essential part in every roll forming production line with its characteristics of easier operation and low maintenance needed with such tight structure.
- The loading capability of our material uncoilers are from 3tons to 10tons.
- Customization is also available, including coil car, press arm, hydraulic distension and frequency inverter.
Product Specification
| Item | ML-400 | ML-600 | ML-800 | ML-1000 |
|---|---|---|---|---|
| Material Width mm | 400 | 600 | 800 | 1000 |
| Max. Material Weight kg | 2000-10000 | 2000-10000 | 2000-10000 | 2000-10000 |
| Coil Inner Diameter mm | Ф450-530 | Ф450-530 | Ф450-530 | Ф450-530 |
| Coil Outer Diameter mm | Ф1200 | Ф1200 | Ф1200 | Ф1200 |
| Feeding Speed m/min | 15 | 15 | 15 | 15 |
| Motor HP | 2 | 3 | 3 | 5 |
| Item | ML-1300 |
|---|---|
| Material Width mm | 1300 |
| Max. Material Weight kg | 2000-10000 |
| Coil Inner Diameter mm | Ф450-530 |
| Coil Outer Diameter mm | Ф1200 |
| Feeding Speed m/min | 15 |
| Motor HP | 5 |
Product Advantages
Support Arm

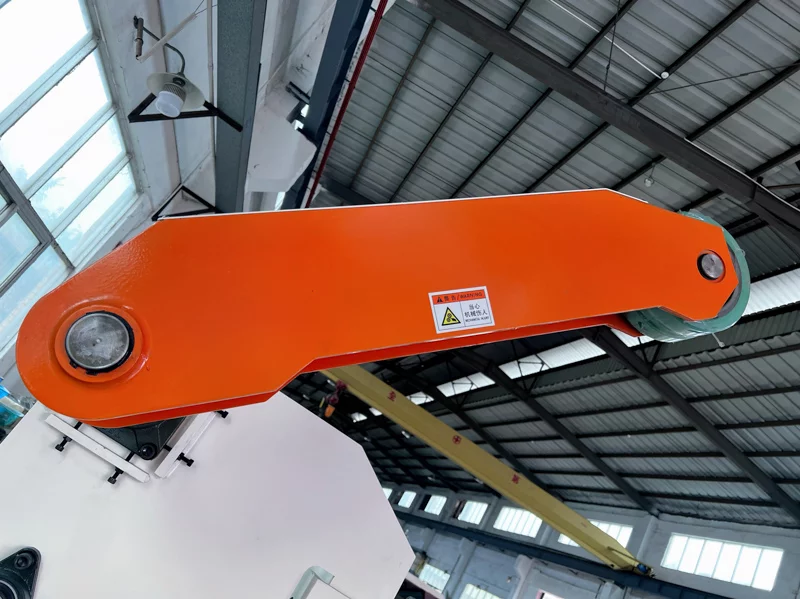

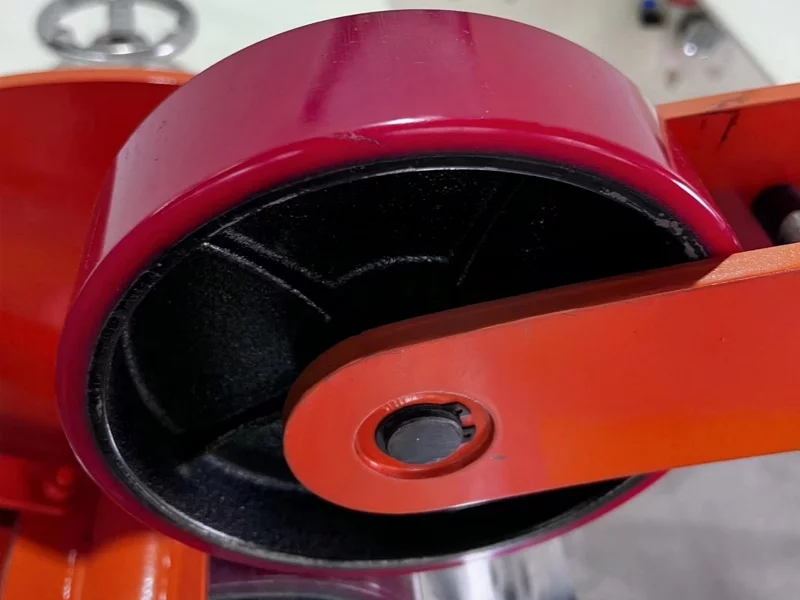

Press Arm
Coil Car
Hydraulic Station

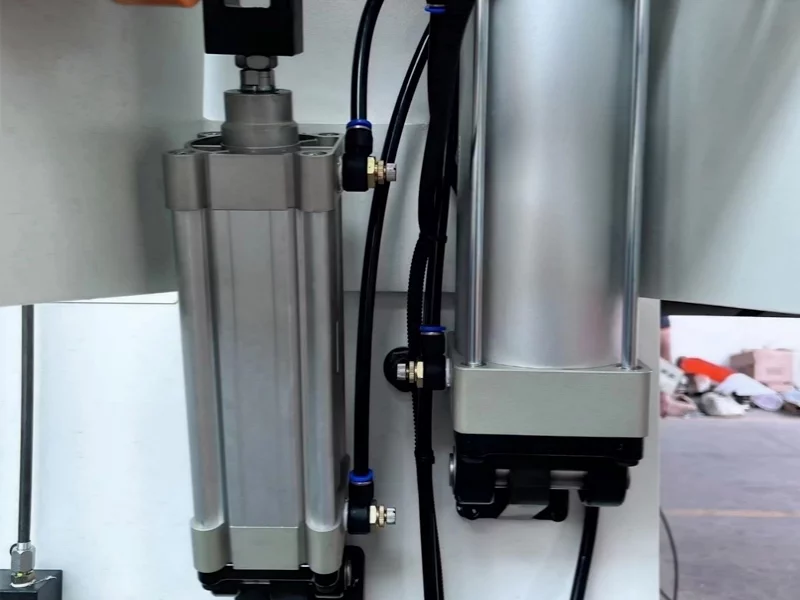

Air Cylinder
Oil Cylinder
