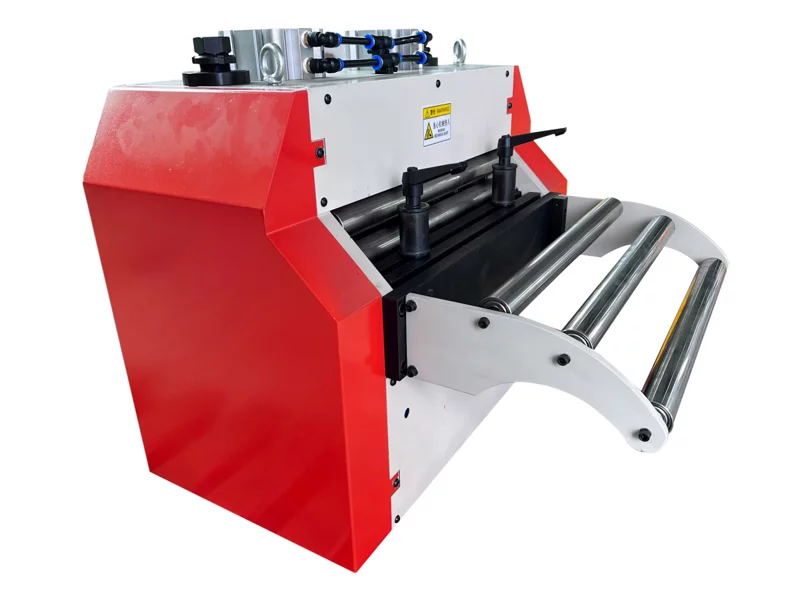

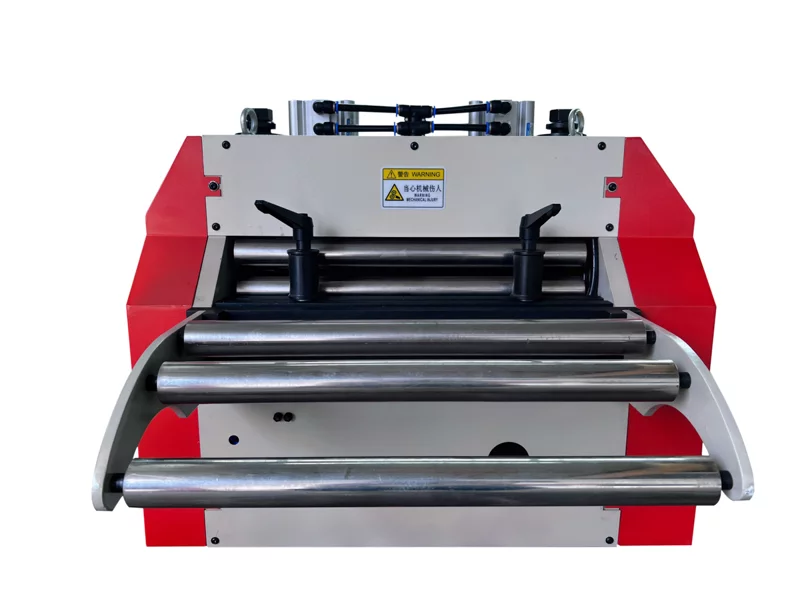

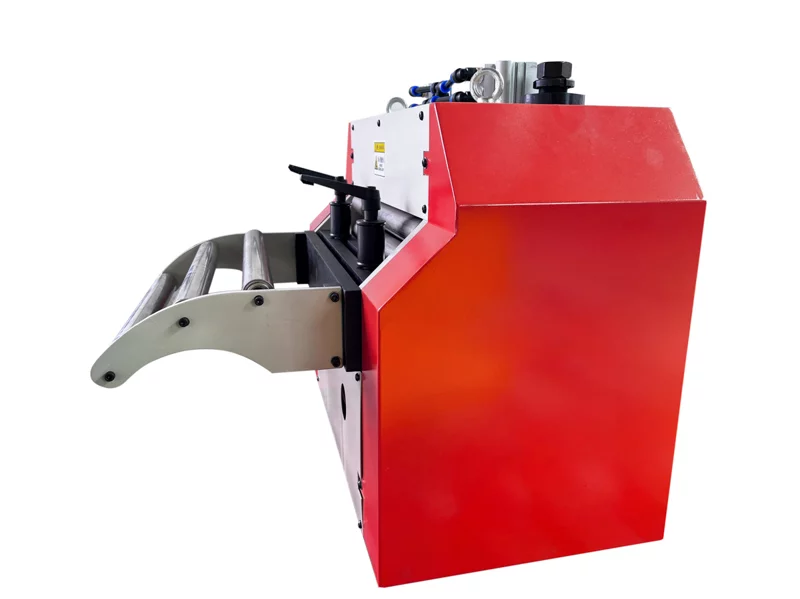

Light Duty NC Servo Feeder Machine For Precision Punch Press Line
Basic Attributes
- Model NCA
- Coil Width 200-500 mm
- Coil Thickness 0.2-2.5 mm
- Feeding Speed 20 m/min
Models List
-
NCA-200
-
NCA-300
-
NCA-400
-
NCA-500
Description
Features
- Ideal For Material Feeding on Different Thicknesses and Various Lengths
- Ideal For High-Speed and Long-Size Feeding, Improve Production Capacity and Feeding Accuracy.

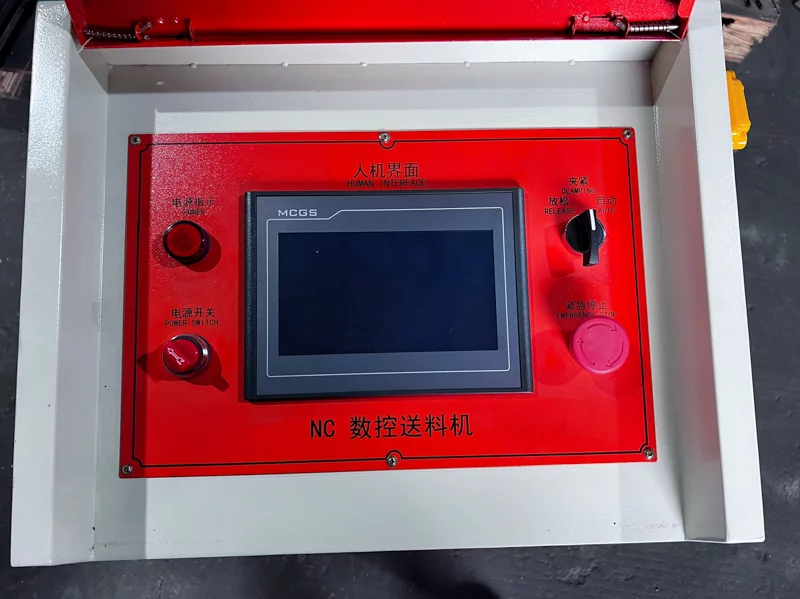

- Smart control, Simple Operation Panel, Feeding Length Can Be Varied From 0.1mm-9999.99mm.
- Mechanical Release or Pneumatic Release
Product Specification
| Item | NCA-200 | NCA-300 | NCA-400 | NCA-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.2-2.5 | 0.2-2.5 | 0.2-2.5 | 0.2-2.5 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feeding Speed m/min | 20 | 20 | 20 | 20 |
| Servo Motor kW | 0.85 | 0.85 | 1.3 | 1.8 |
| Feeding Height mm | 70 - 280 | 70 - 280 | 70 - 280 | 70 - 280 |
| Machine Size mm | 610×460×440 | 610×560×440 | 610×660×440 | 610×760×440 |
Product Advantages
Spacing Rod
Air Triple
Servo Motor
Coil Inlet
