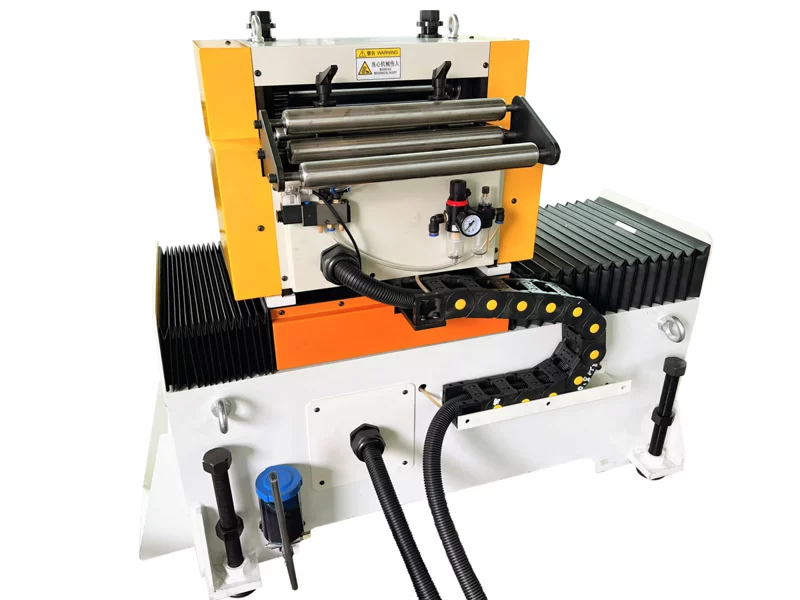

Zigzag Deflection Smart Control Servo Feeder For Blanking Stamping Production Line
Basic Attributes
- Model NCP
- Coil Width 200-800 mm
- Coil Thickness 0.3-3.2 mm
Models List
-
NCP-200
-
NCP-300
-
NCP-400
-
NCP-500
-
NCP-600
-
NCP-700
-
NCP-800
Description
Features
- By deflection, it is able to improve the material utilization in order to minimize the manufacturing waste, suitable materials include steel, copper, aluminum, special alloys and bimetal.
- Maximum speed up to 60 times per minute improves work efficiency.
- Occupied space and energy consumption can be reduced.
- Transport damage can be prevented by built-in motor design.
- Fully automatic control system, which helps to save manpower.
Product Specification
| Item | NCP-200 | NCP-300 | NCP-400 | NCP-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Material Thickness mm | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 |
| Relaxation | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Item | NCP-600 | NCP-700 | NCP-800 |
|---|---|---|---|
| Material Width mm | 600 | 700 | 800 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 |
| Material Thickness mm | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 |
| Relaxation | Pneumatic | Pneumatic | Pneumatic |
