Heavy Duty NC Servo Feeder Machine For Thick High Strength Metal Plate
Basic Attributes
- Model NCH
- Coil Width 300-1000 mm
- Coil Thickness 0.5-6.0 mm
- Feeding Speed 20 m/min
Models List
-
NCH-300
-
NCH-400
-
NCH-500
-
NCH-600
-
NCH-700
-
NCH-800
-
NCH-900
-
NCH-1000
Description
Features
- Ideal for material feeding on different thicknesses and various lengths.
- Ideal for high-speed and long-size feeding, improving production efficiency and feeding accuracy.
- Smart control, simple operation panel, feeding length can be varied from 0.1mm-9999.99mm.
- There are also models for heavier duty such as 8.0mm or 10.0mm thickness coil feeding, and we also have two rollers and four rollers versions depends on the material and requirement.
Product Specification
| Item | NCH-300 | NCH-400 | NCH-500 | NCH-600 |
|---|---|---|---|---|
| Material Width mm | 300 | 400 | 500 | 600 |
| Material Thickness mm | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feeding Speed m/min | 20 | 20 | 20 | 20 |
| Servo Motor kW | 1.8 | 2.9 | 2.9 | 4.4 |
| Feeding Height mm | 90-350 | 90-350 | 90-350 | 90-350 |
| Machine Size mm | 1000×730×620 | 1000×830×620 | 1000×930×620 | 1000×1030×620 |
| Item | NCH-700 | NCH-800 | NCH-900 | NCH-1000 |
|---|---|---|---|---|
| Material Width mm | 700 | 800 | 900 | 1000 |
| Material Thickness mm | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 |
| Feeding Length mm | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| Feeding Speed m/min | 20 | 20 | 20 | 20 |
| Servo Motor kW | 4.4 | 4.4 | 5.5 | 5.5 |
| Feeding Height mm | 90-350 | 90-350 | 90-350 | 90-350 |
| Machine Size mm | 1000×1130×620 | 1000×1230×620 | 1000×1330×620 | 1000×1430×620 |
Product Advantages
Servo Motor
Control Panel
Position Wheel
Pneumatic Valve

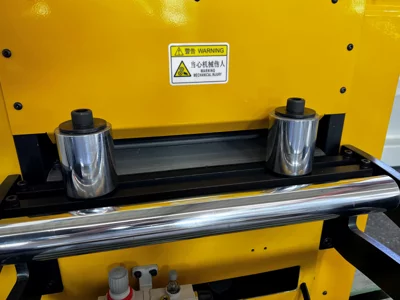

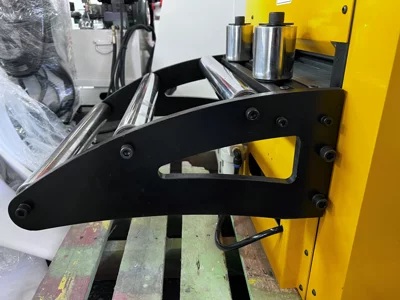

Coil Inlet
Coil Outlet

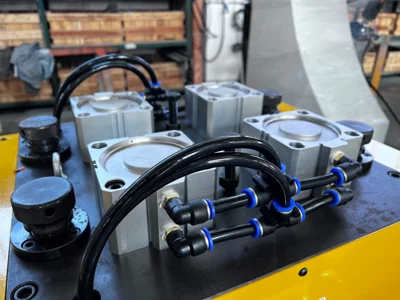

Air Cylinder
