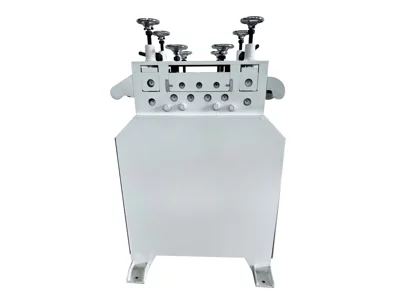

TL Levelling Machine For Metal Sheet Plates Straightening With Chromed Roller
Basic Attributes
- Model TL
- Coil Width 200-800 mm
- Coil Thickness 0.3-3.5 mm
Models List
-
TL-200
-
TL-300
-
TL-400
-
TL-500
-
TL-600
Description
Features
- It is designed to straighten the metal plate after uncoiling, no matter the plate is twisted or bended.
- It is suitable to all types of metal plates straightening, and there will be no scratching on surface.
- It can be used alone or works with the material uncoiler.
- Usually equipped with NC servo feeder to ensure the material plate is flat as required before feeding into the press mold.
- Chrome plated strengthening rollers with higher durability.
Product Specification
| Item | TL-200 | TL-300 | TL-400 | TL-500 |
|---|---|---|---|---|
| Material Width mm | 200 | 300 | 400 | 500 |
| Material Thickness mm | 0.3-3.5 | 0.3-3.5 | 0.3-3.5 | 0.3-3.5 |
| Rollers mm | Ф59.5*7 | Ф59.5*7 | Ф59.5*7 | Ф59.5*7 |
| Feeding Speed m/min | 15 | 15 | 15 | 15 |
| Motor HP | 1 | 2 | 2 | 2 |
| Item | TL-600 |
|---|---|
| Material Width mm | 600 |
| Material Thickness mm | 0.3-3.5 |
| Rollers mm | Ф59.5*7 |
| Feeding Speed m/min | 15 |
| Motor HP | 3 |
Product Advantages
Adjustment Wheel

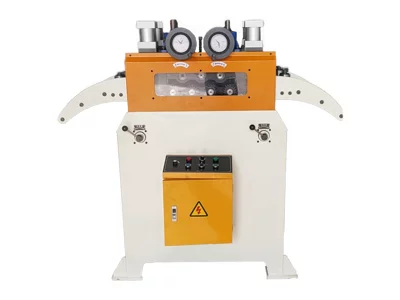

Adjustment Wheel on GO Straightening Machine With Uncoiler
Straightening Rollers
Straightening Rollers on GO Straightening Machine With Uncoiler
Coil Inlet
Coil Inlet on GO Straightening Machine With Uncoiler
