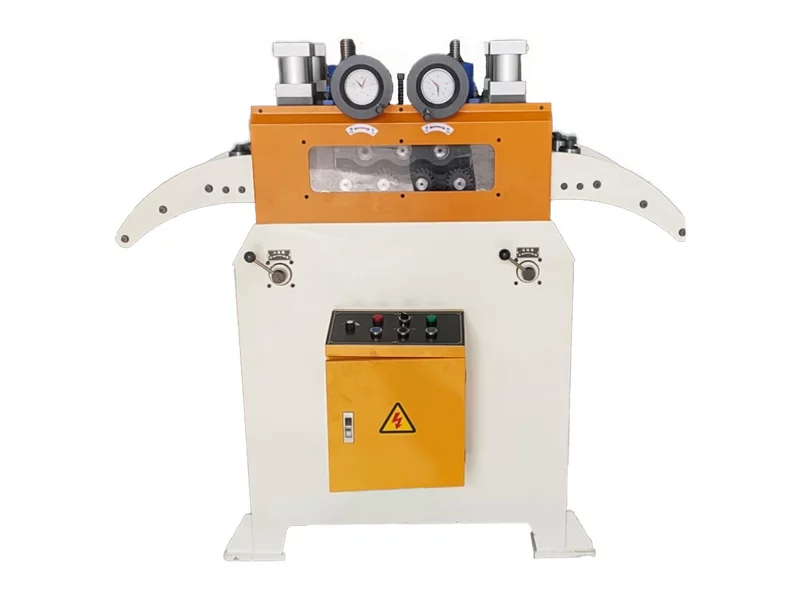

Heavy Duty Straightener Machine For Thick Metal Sheet Punch Press Line
Basic Attributes
- Model TL-C
- Coil Width 300-500 mm
- Coil Thickness 0.3-4.5 mm
- Coil Weight Capacity 15 kg
Models List
-
TLC-300
-
TLC-400
-
TLC-500
Description
Features
- It is designed to straighten the metal plate after uncoiling, no matter the plate is twisted or bended.
- It is suitable to all types of metal plates straightening, and there will be no scratching on surface.
- It can be used alone or works with the material uncoiler.
- Usually equipped with NC servo feeder to ensure the material plate is flat as required before feeding into the press mold.
- Chrome plated roller with higher durability, roller can also be rubber covered for vulnerable such as copper and aluminum alloy.
Product Specification
| Item | TLC-300 | TLC-400 | TLC-500 |
|---|---|---|---|
| Material Width mm | 300 | 400 | 500 |
| Material Thickness mm | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Rollers | Ф77*7 | Ф77*7 | Ф77*7 |
| Adjustment | Worm gear | Worm gear | Worm gear |
| Feeding Speed m/min | 15 | 15 | 15 |
| Motor HP | 5 | 5 | 5 |
Product Advantages

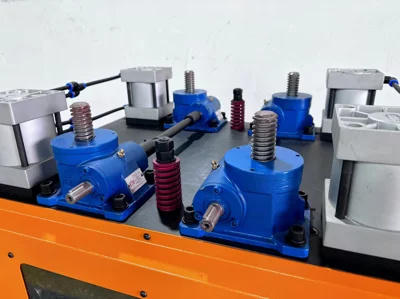

Straightening Roller Adjustment
Straightening Roller Adjustment
Spacing Rod
