Space Saving Uncoiler Straighter And Feeder Machine For Blanking Stamping
Basic Attributes
- Model MXA3
- Coil Width 70-1300 mm
- Coil Thickness 0.3-4.5 mm
- Coil Weight Capacity 12,000 kg
- Feeding Speed 24 m/min
- Feeding Accuracy ±0.15/±0.20 mm
Models List
-
MXA3-400
-
MXA3-600
-
MXA3-800
-
MXA3-1000
-
MXA3-1300
Description
Features
- Combined uncoiler, straightener and feeder with ergonomic design, providing easier operation and better stability. Space saved with enhanced operation safety.
- Able to straighten types of material including hot rolled plate, cold rolled plate, pickled plate, stainless steel plate and aluminum alloy.

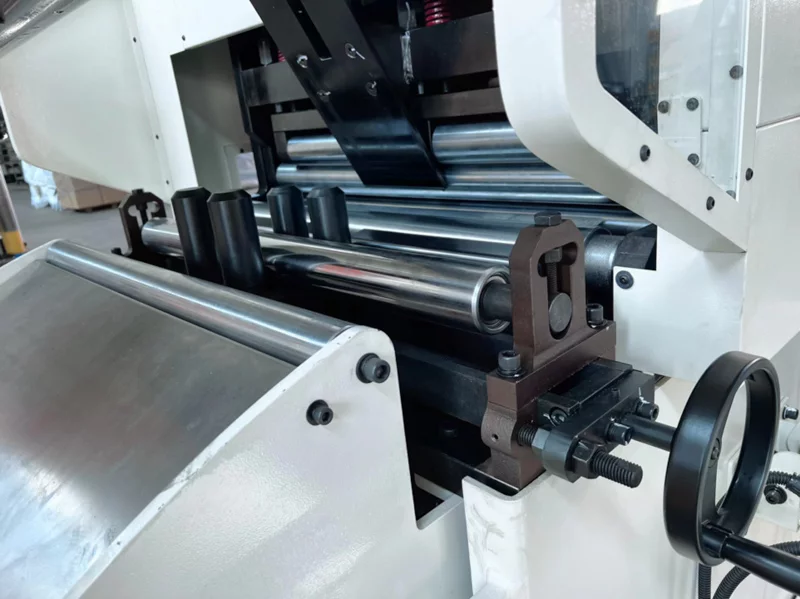

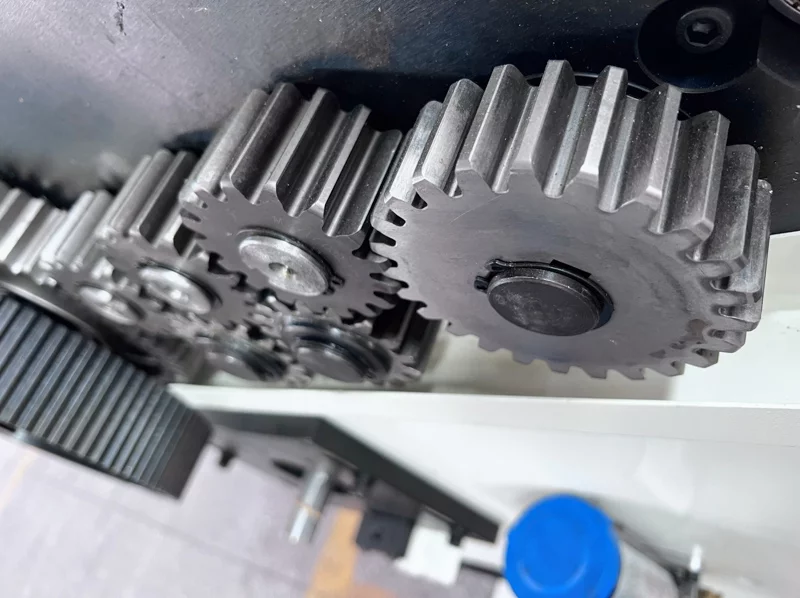

- 7 straightening rollers made of GCr15 with thermal treatment reaching hardness of HRC 56, also equipped with high standard grinding gears.
- Well-known brand servo system and other electrical devices to better ensure the stability and lifespan of the machine to lower the need of after-sales service.
- All standard models are able to fit all kinds of press, and customization is also available.
Straightening Capability
Feeding Speed Curve
Product Specification

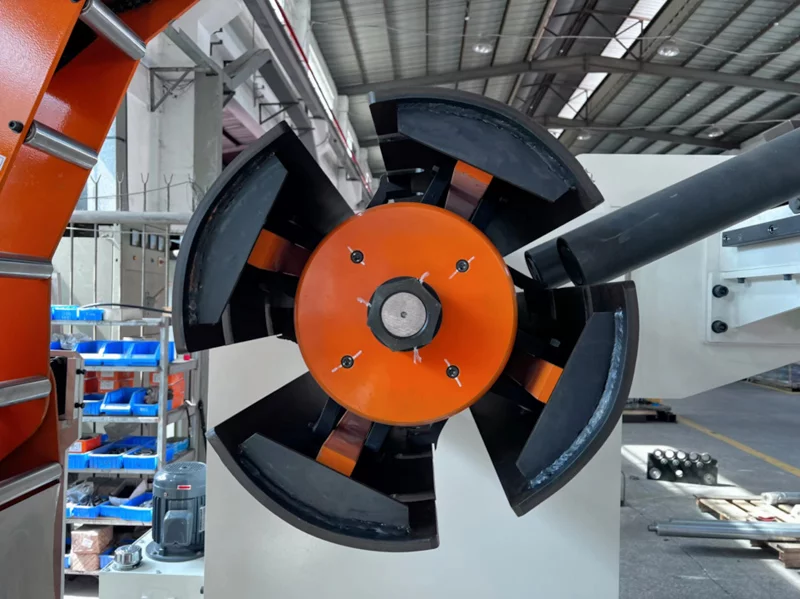

| Item | MXA3-400 | MXA3-600 | MXA3-800 | MXA3-1000 |
|---|---|---|---|---|
| Material Width mm | 70-400 | 70-600 | 70-800 | 70-1000 |
| Material Thickness mm | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 | 0.3-4.5 |
| Max. Material Weight kg | 5000 | 8000 | 8000 | 8000 |
| Coil Inner Diameter mm | 508 | 508 | 508 | 508 |
| Coil Outer Diameter mm | 1200 | 1200 | 1200 | 1200 |
| Straightening Capacity mm/m2 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Air Pressure MPa | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
| Servo Motor kW | 4.4 | 5.5 | 5.5 | 7.5 |
| Material Rack Motor kW | 2.2 | 3.7 | 3.7 | 3.7 |
| Feeding Height mm | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/±0.2 | ±0.15/±0.2 | ±0.15/±0.2 | ±0.15/±0.2 |
| Max. Feeding Speed m/min | 24 | 24 | 24 | 24 |
| Mandrel Expansion Range mm | 480-520 | 480-520 | 480-520 | 480-520 |
| Item | MXA3-1300 |
|---|---|
| Material Width mm | 70-1300 |
| Material Thickness mm | 0.3-4.5 |
| Max. Material Weight kg | 12000 |
| Coil Inner Diameter mm | 508 |
| Coil Outer Diameter mm | 1200 |
| Straightening Capacity mm/m2 | ±1.5 |
| Air Pressure MPa | 0.5-0.6 |
| Servo Motor kW | 7.5 |
| Material Rack Motor kW | 5.5 |
| Feeding Height mm | 1200 ± 100 |
| Standard Feeding Accuracy mm | ±0.15/±0.2 |
| Max. Feeding Speed m/min | 24 |
| Mandrel Expansion Range mm | 480-520 |
Product Advantages
Oil Cylinder
Hydraulic Station
Coil Car
YASKAWA Servomotor
Mitsubishi PLC
Control Panel
Transmission gearbox
Press and Support Arms
Position Device
