The silencer on magnetic valve

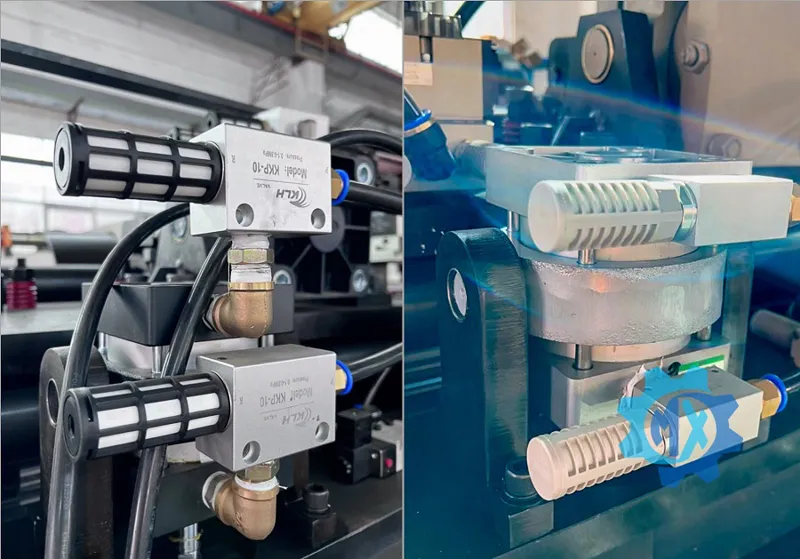

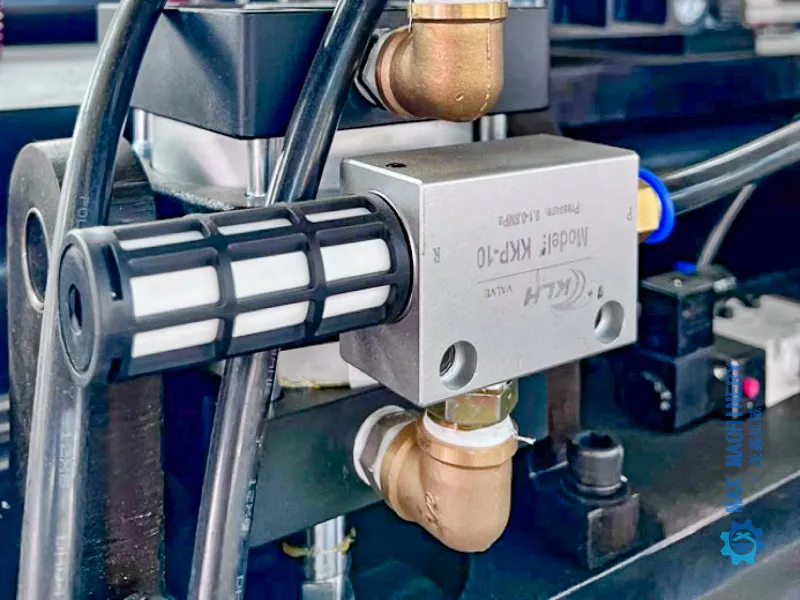

The silencer plays an important role on the 3-in-1 feeder, reducing exhaust pulsation during releasing to reduce the noise as much as possible. The noise is loud when magnetic valve exhausts the air, especially when there are numbers of valves on the machine, which makes the silencer becomes helpful, installation of silencer can effectively reduce noise, silencer can also prevent dust and other fine particles in the air into the magnetic valve, otherwise it will lead to obstruction to the valve core and block the movement, thereby reducing the lifespan of the magnetic valve.

Magnetic valve is a closed chamber, holes in each side, each hole is connected to different air tube, the middle of the chamber is a piston with two electromagnets on each side. Valve body will be attracted to the side which magnet coil being energized, by controlling the movement of the valve body to control the air flow path.in order to drives the mechanism.

Different brands of silencer have different lifespan and effect, common brands might be broken and lost its function after two to three months if the gas flow is large, and the erasure effect also not as good as famous brands like AirTag or SNC, so all our machines are equipped with these few top brands silencer to guarantee the quality.

Punching machine production noise is relatively large, so if the noise can be reduced, operators do not have to bear this noise which may cause harm to their body in long run, so a small part like the silencer is also an indispensable part of the air circuit system.
